2.0mm Expanded Wire Mesh Machine With Automatic Lubricating System

Name: 20mm Expanded Wire Mesh Machine With Automatic Lubricating System
Brand: QIJIE
Price: 1 USD

Brand Name : QIJIE

Model Number : EXPANDED METAL MESH MACHINE

Certification : SGS

Place of Origin : CHINA

MOQ : 1set

Payment Terms : TT/LC

Supply Ability : 10set/month

Delivery Time : 10-12days

Packaging Details : wood case or pallets

width : 2500mm

Punching Times/Min : 55

Motor Power( KW) : 15

Email : devin@industrialmetalmesh.com

whatsapp : +8615369013183

Contact Now

Expanded metal mesh making machine by sheet thickness 2.0 mm model DZ-JQ25-45

Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc. Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.

Techincal parameter

Type	JQ25-6.2T	JQ25-16T	JQ25-25T	JQ25-40T	JQ25-63T	JQ25-100T
Material thickness(mm)	Max1.0	Max1.0	Max1.5	Max3.0	Max4.0	Max6.0
Net Width(mm)	Max600	Max1000	Max1250	Max1500	Max1500	Max2500
Punching Times/Min	300	160	160	80	67	55
Feeding Distance(mm)	0-10	0-10	0-10	0-10	0-20	0-20
Length of Mesh(mm)	Max20	Max25	Max40	Max80	Max200	Max200
Motor Power( KW)	2.2	3.2	4.0	11	11	15
Weight( T)	0.95	2	3	6	10	12
Overal Dimension(mm)	950x570x1780	1800x1320x1550	1940x1600x2010	2870x990x2140	2400x3500x2300	3600x2500x3000

we also can make the machine according to the client's requirment

2.0mm Expanded Wire Mesh Machine With Automatic Lubricating System

Product Tags:

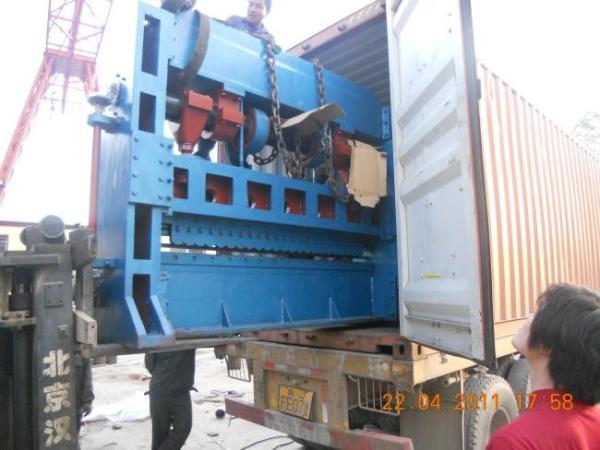

2.0mm Expanded Wire Mesh Machine With Automatic Lubricating System Images
